Uniform Core Grip
Longitudinal expanding elements provide distributed contact along the roll core.
JIACHENGPAPER MACHINE ENGINEERINGRequest a quote
PRODUCT SYSTEM · C07
Secure gripping.
Fast roll changes.

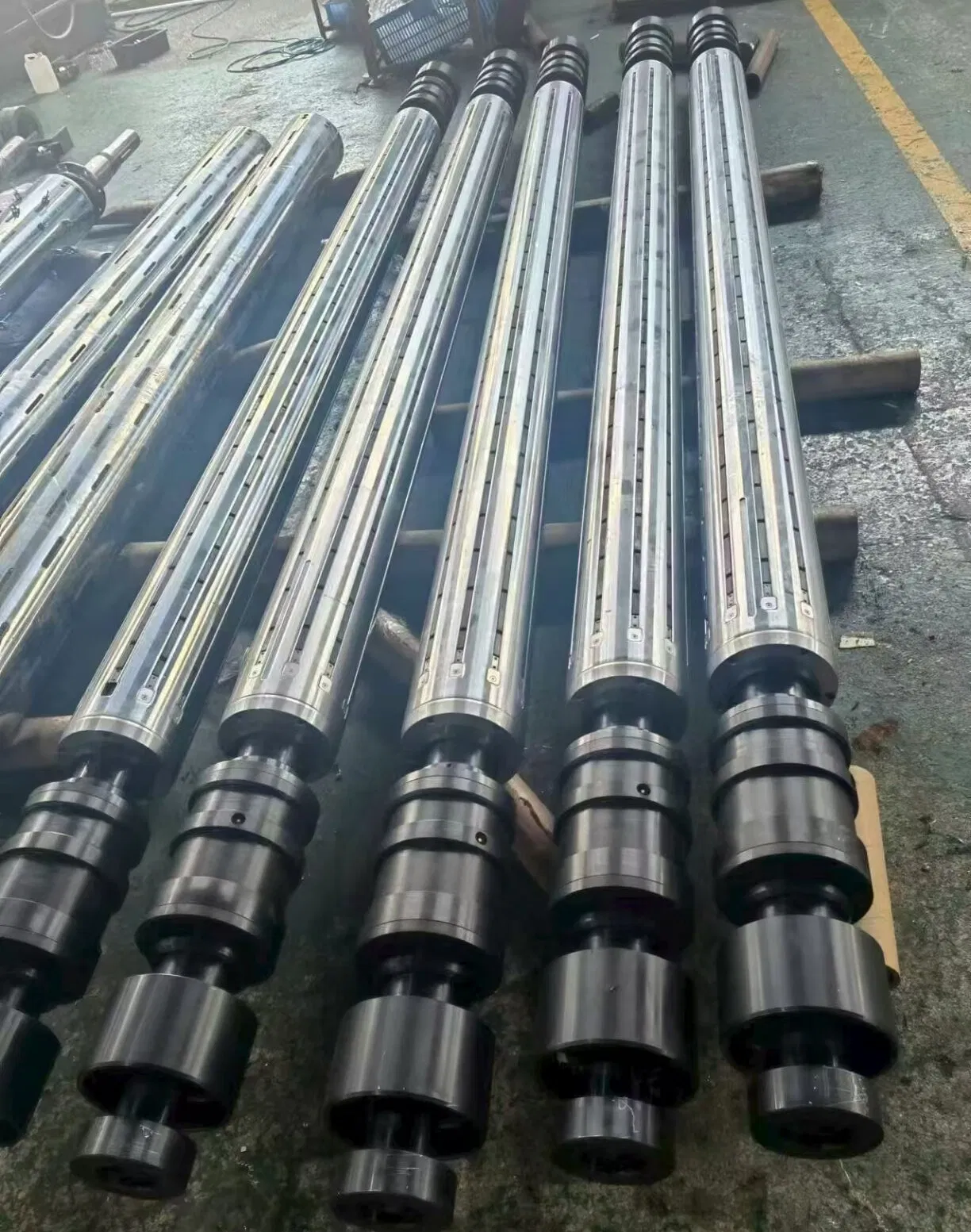

Pneumatic expanding shafts for dependable core gripping during paper winding and unwinding operations.C07Air Expanding Shafts
PNEUMATIC WINDING EQUIPMENT
Engineered around your process.
Jiacheng configures air expanding shafts around the paper core size, face length, roll weight, operating speed, torque and machine interface. Shaft body, expanding elements, journals and air connection are coordinated for practical handling and reliable roll support.
Application Fit
Body diameter, face length and journal details are matched to the winding position.
Practical Operation
Simple pneumatic expansion supports efficient loading, unloading and roll changes.
OPERATING BENEFITS
What this equipment improves.
Reliable core gripping
Expanding elements distribute contact along the core for winding and unwinding duty.
Efficient roll changes
Pneumatic expansion supports practical loading, release and changeover.
Custom journal interfaces
Shaft ends can be machined to match the customer’s bearings, chucks or drive connection.
Duty-based construction
Body, expanding mechanism and journals are selected around roll weight, speed and torque.
APPLICATIONS
Configured for the product you need to make.
- 01Paper roll winding
- 02Paper roll unwinding
- 03Slitting and rewinding
- 04Converting equipment
TECHNICAL PROFILE
Configured to the actual machine duty.
Final materials, dimensions and interfaces are confirmed from the customer’s operating data and drawings.
- Applications
- Winding, unwinding, slitting, rewinding and converting
- Core diameter
- Customized to the customer’s paper-core specification
- Expanding face length
- Confirmed from roll width and support requirement
- Load and torque
- Engineered from maximum roll weight and operating duty
- Journals
- Custom machined to the approved machine interface
- Pre-delivery check
- Expansion, air tightness, dimensions and functional operation
IN-HOUSE CAPABILITY
From engineering
to commissioning.
Project requirements are translated into practical manufacturing, inspection and support steps by one coordinated team.
FREQUENTLY ASKED QUESTIONS
Useful details before inquiry.
Which data is needed for quotation?+
Please provide core inside diameter, roll width and weight, speed, torque, journal drawing, air pressure and the winding position.
Can the shaft ends match an existing machine?+
Yes. Both journal ends can be manufactured to an approved customer drawing after bearing and drive interfaces are verified.
How is the shaft checked before shipment?+
Checks can include key dimensions, expansion and release, air tightness, surface condition and functional operation.
TECHNICAL INQUIRY
What to send us.
These details help our engineers understand your operating target and prepare a relevant technical proposal.
- 01Core inside diameter
- 02Expanding face length
- 03Maximum roll weight
- 04Operating speed and torque
- 05Journal dimensions
- 06Drawing or machine interface data
PROJECT BRIEF
Start with your production target.
Submit the basic process data below. Jiacheng will use it to prepare the next technical discussion—not a generic catalogue quotation.
DISCUSS YOUR PROJECT
Let’s define the right solution.
Send your parameters, existing drawings or site photos. Our team will review the application and reply with the next engineering steps.
