Controlled Tension
Actuation and structure matched to the required clothing load and travel.
JIACHENGPAPER MACHINE ENGINEERINGRequest a quote
PRODUCT SYSTEM · 09
Stable tension.
Accurate guiding.

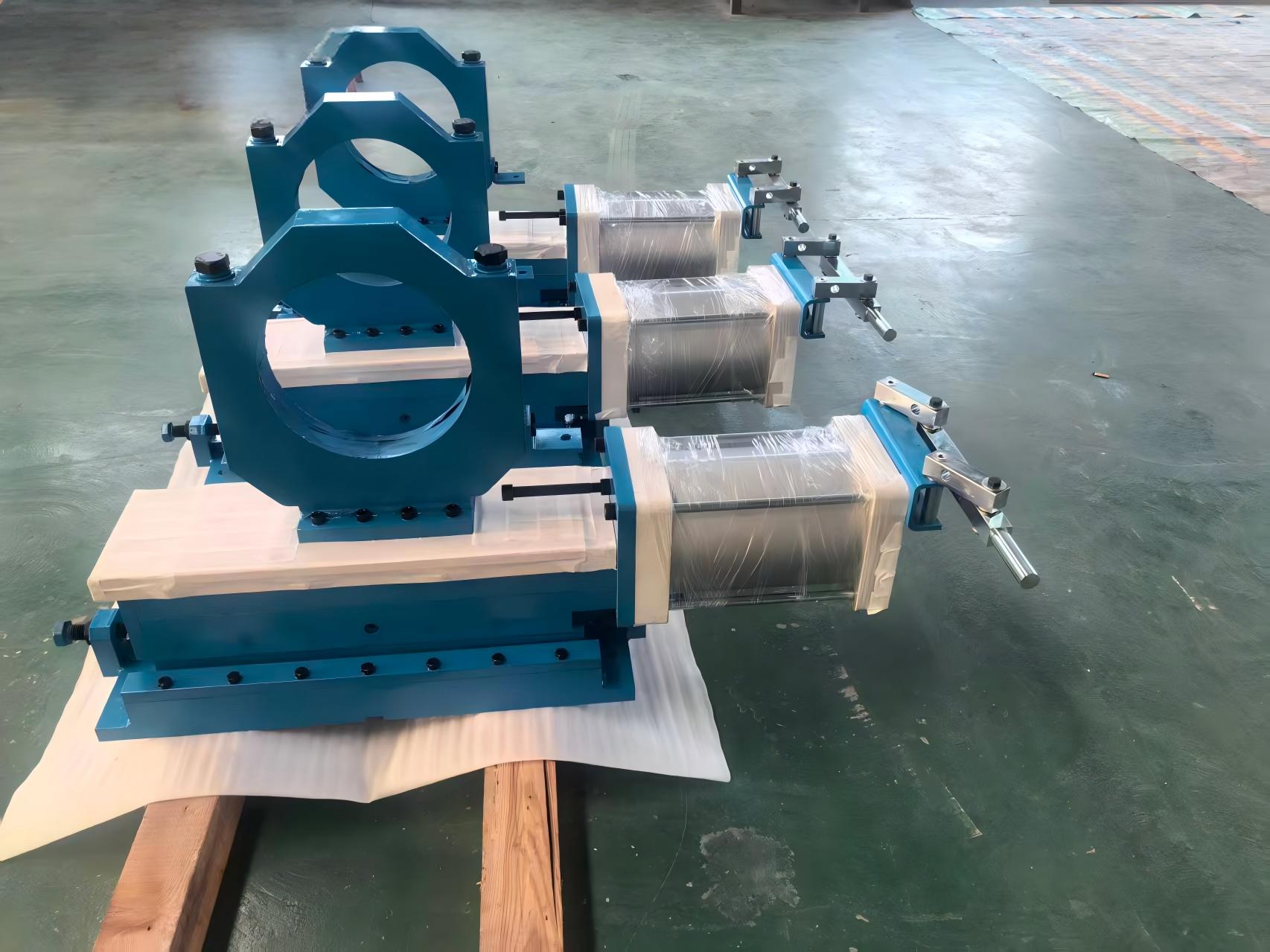

Tensioning and guiding assemblies for forming fabrics, press felts and paper machine clothing.09Tensioners & Guiders
FABRIC HANDLING SYSTEMS
Engineered around your process.
Jiacheng tensioners and guiding systems are configured around machine width, travel, loading method, mounting arrangement and the clothing position. Assemblies are manufactured and function-tested before delivery.
Guiding Accuracy
Responsive correction assemblies for stable fabric or felt tracking.
Machine Integration
Mounting interfaces adapted to new equipment and rebuild projects.
OPERATING BENEFITS
What this equipment improves.
Stable clothing tension
Actuation and travel are configured around forming-fabric or felt load requirements.
Accurate guiding response
Correction assemblies support reliable fabric and felt tracking during operation.
Machine-specific installation
Frames, bearings, actuators and mounting interfaces are adapted to the machine layout.
Workshop function test
Movement, correction response and adjustment can be checked before delivery.
APPLICATIONS
Configured for the product you need to make.
- 01Forming fabric tensioning
- 02Press felt tensioning
- 03Automatic guiding
- 04Machine rebuilds
TECHNICAL PROFILE
Configured to the actual machine duty.
Final materials, dimensions and interfaces are confirmed from the customer’s operating data and drawings.
- Applications
- Forming fabric, press felt and other paper-machine clothing
- System types
- Tensioning assemblies and automatic or pneumatic guiding systems
- Design inputs
- Machine width, clothing load, travel, roll size and mounting arrangement
- Actuation
- Selected according to duty and available utilities
- Construction
- Fabricated and machined structure to approved drawings
- Project mode
- New machine, retrofit or replacement assembly
IN-HOUSE CAPABILITY
From engineering
to commissioning.
Project requirements are translated into practical manufacturing, inspection and support steps by one coordinated team.
FREQUENTLY ASKED QUESTIONS
Useful details before inquiry.
What data is required for a tensioner?+
Please provide the clothing position, working width, roll dimensions, required travel, target tension and installation drawing.
What data is required for a guider?+
Please send the fabric or felt position, guide-roll dimensions, correction travel, actuator preference and available mounting space.
Can the system be supplied for a rebuild?+
Yes. Existing-machine drawings, site dimensions and operating issues are reviewed before the replacement interface is finalized.
TECHNICAL INQUIRY
What to send us.
These details help our engineers understand your operating target and prepare a relevant technical proposal.
- 01Clothing position
- 02Machine width
- 03Required travel
- 04Target tension
- 05Actuation preference
- 06Mounting and roll dimensions
PROJECT BRIEF
Start with your production target.
Submit the basic process data below. Jiacheng will use it to prepare the next technical discussion—not a generic catalogue quotation.
DISCUSS YOUR PROJECT
Let’s define the right solution.
Send your parameters, existing drawings or site photos. Our team will review the application and reply with the next engineering steps.
