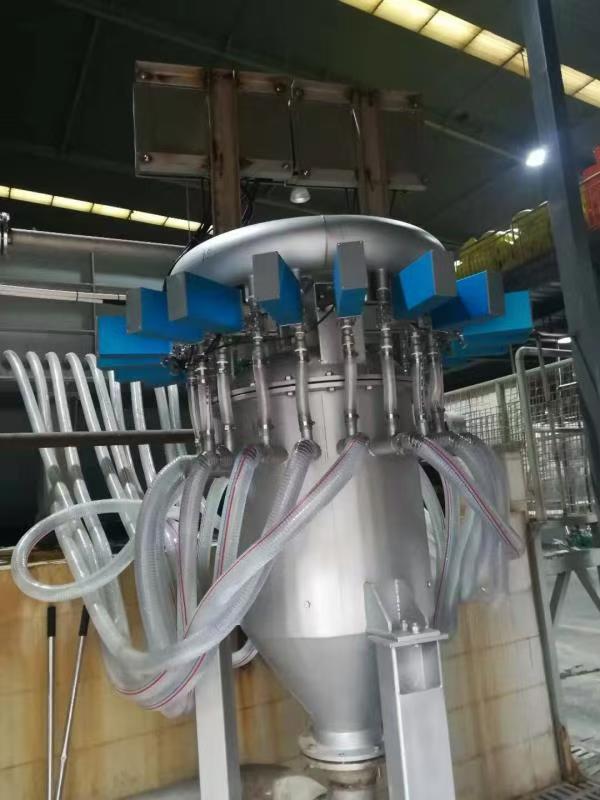

Uniform Distribution
Flow paths and internal elements are developed for consistent cross-machine stock delivery.
JIACHENGPAPER MACHINE ENGINEERINGRequest a quote
PRODUCT SYSTEM · 04
Stable flow.
Uniform formation.

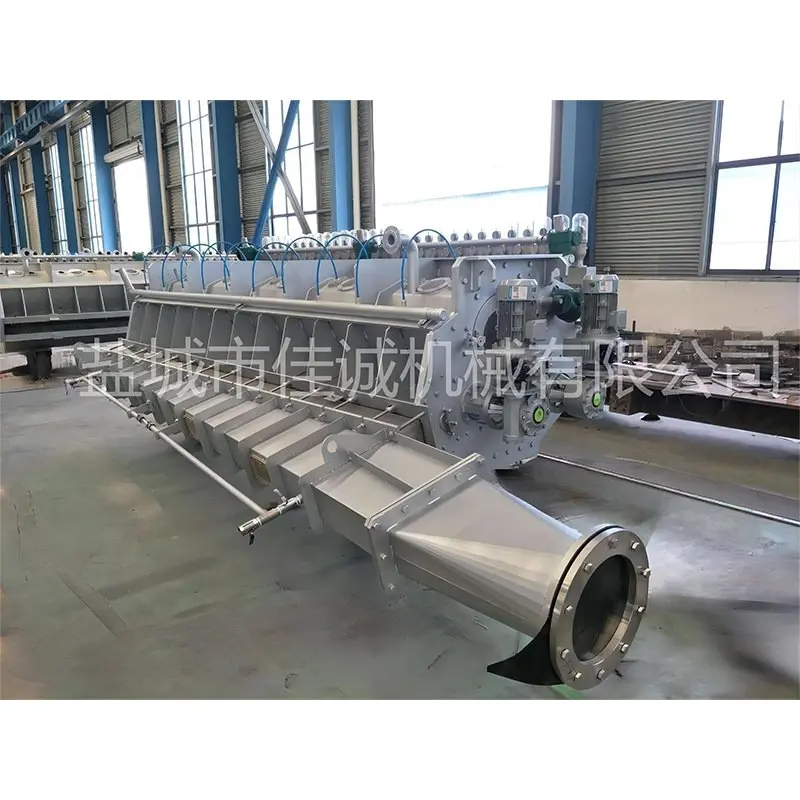

Open, air-cushion and customized headbox systems for controlled stock delivery across the machine width.04Paper Machine Headboxes
ENGINEERED FLOW DISTRIBUTION
Engineered around your process.
Jiacheng configures each headbox around the paper grade, furnish, machine width, operating speed and flow demand. Manifold, distribution elements, slice geometry and machine interfaces are coordinated to support stable operation and consistent sheet formation.
Application Engineering
Headbox type, geometry and interfaces are matched to the paper grade and machine conditions.
Manufacturing Support
Machining, assembly, inspection and practical commissioning guidance from one team.
OPERATING BENEFITS
What this equipment improves.
Uniform stock delivery
The manifold, distribution elements and slice geometry are coordinated to support stable cross-machine flow.
Formation-focused design
Headbox type and internal arrangement are selected around furnish, grade, width, speed and basis weight.
Rebuild compatibility
Mounting, approach-flow and slice interfaces can be adapted to an existing paper machine after site data is reviewed.
Controlled manufacturing
Critical parts are machined, assembled and inspected against the approved project drawings.
APPLICATIONS
Configured for the product you need to make.
- 01Tissue machines
- 02Corrugated and packaging paper
- 03Cultural paper
- 04Specialty paper
TECHNICAL PROFILE
Configured to the actual machine duty.
Final materials, dimensions and interfaces are confirmed from the customer’s operating data and drawings.
- Available types
- Open, air-cushion and project-specific headbox systems
- Paper grades
- Tissue, packaging, cultural and specialty paper
- Design inputs
- Furnish, flow, consistency, working width, speed and basis-weight range
- Main components
- Manifold, distribution section, rectifier elements, pond and slice assembly
- Material
- Selected stainless-steel and fabricated components according to duty
- Supply mode
- New machine, rebuild replacement or key internal components
IN-HOUSE CAPABILITY
From engineering
to commissioning.
Project requirements are translated into practical manufacturing, inspection and support steps by one coordinated team.
FREQUENTLY ASKED QUESTIONS
Useful details before inquiry.
How is the correct headbox type selected?+
Selection starts from paper grade, furnish, machine speed, width, consistency and formation target, together with the available approach-flow system.
Can Jiacheng replace an existing headbox?+
Yes. Please provide the current drawings, machine-side dimensions, flow data, photos and operating problems for an interface review.
Which headbox components can be supplied?+
Depending on the project, the supply can include rectifier rolls, perforated plates, manifolds, slice components and other machined internals.
TECHNICAL INQUIRY
What to send us.
These details help our engineers understand your operating target and prepare a relevant technical proposal.
- 01Paper grade and furnish
- 02Working width
- 03Design speed
- 04Basis weight range
- 05Production capacity
- 06Approach-flow and installation data
PROJECT BRIEF
Start with your production target.
Submit the basic process data below. Jiacheng will use it to prepare the next technical discussion—not a generic catalogue quotation.
DISCUSS YOUR PROJECT
Let’s define the right solution.
Send your parameters, existing drawings or site photos. Our team will review the application and reply with the next engineering steps.
