Drainage Control
Element geometry selected to support stable water removal and sheet formation.
JIACHENGPAPER MACHINE ENGINEERINGRequest a quote
PRODUCT SYSTEM · 07
Controlled drainage.
Reliable forming.

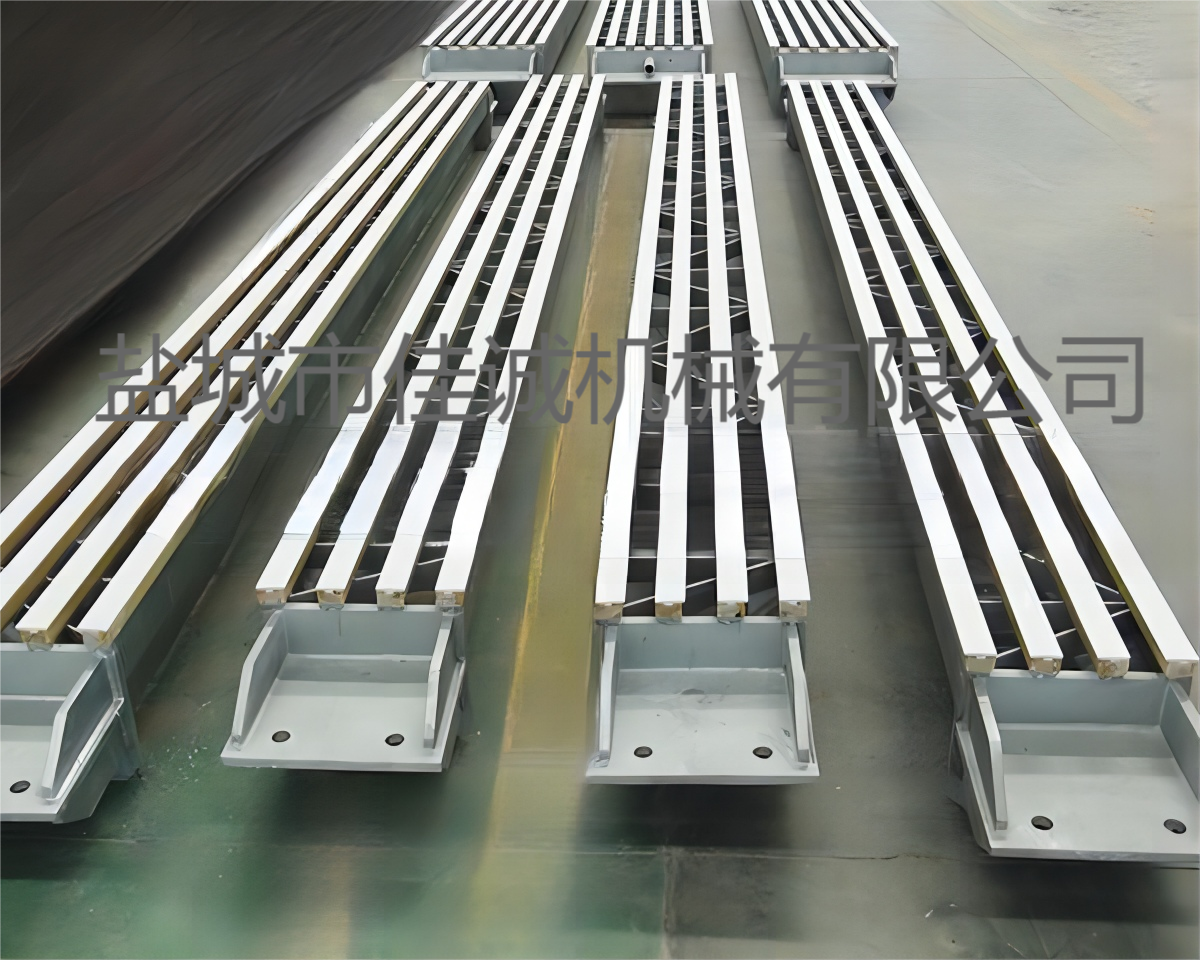

Foils, forming elements and vacuum suction boxes configured for the paper machine forming section.07Dewatering Elements
FORMING SECTION COMPONENTS
Engineered around your process.
Dewatering components are selected around machine speed, furnish, drainage demand, forming fabric and installation geometry. Ceramic surfaces and supporting structures can be customized for new machines and rebuilds.
Wear Surfaces
Ceramic contact surfaces specified for operating speed and service conditions.
Custom Interfaces
Frames, widths and connection details adapted to the existing machine.
OPERATING BENEFITS
What this equipment improves.
Controlled drainage
Element geometry and vacuum duty are selected to support stable water removal and sheet formation.
Durable contact surface
Ceramic wear surfaces are specified around speed, fabric contact and service conditions.
Clean internal construction
Stainless-steel bodies can be finished for practical cleaning and reliable wet-end service.
Machine-specific fit
Width, mounting, vacuum connections and support details are adapted to new machines or rebuilds.
APPLICATIONS
Configured for the product you need to make.
- 01Fourdrinier forming sections
- 02Multi-ply forming systems
- 03Machine rebuilds
- 04Vacuum dewatering upgrades
TECHNICAL PROFILE
Configured to the actual machine duty.
Final materials, dimensions and interfaces are confirmed from the customer’s operating data and drawings.
- Element types
- Forming boards, foils and vacuum suction boxes
- Body material
- Stainless steel, selected by duty
- Wear surface
- Application-matched ceramic elements
- Surface finish
- Machined and finished for wet-end service
- Manufacturing
- CNC machining and dimensional inspection
- Specification
- Customized to machine width and interface
FREQUENTLY ASKED QUESTIONS
Useful details before inquiry.
Which dewatering elements can Jiacheng supply?+
The range includes forming boards, foil assemblies, low- and high-vacuum suction boxes, transfer boxes and felt suction boxes, depending on the machine section.
How is the ceramic grade selected?+
Selection is based on machine speed, forming fabric, contact pressure, water chemistry and the expected wear duty.
Can the elements be made for an existing machine?+
Yes. Please provide the working width, mounting dimensions, vacuum connection arrangement and photos or drawings of the current equipment.
TECHNICAL INQUIRY
What to send us.
These details help our engineers understand your operating target and prepare a relevant technical proposal.
- 01Machine type
- 02Working width
- 03Operating speed
- 04Furnish and drainage demand
- 05Existing mounting dimensions
- 06Vacuum connection requirements
PROJECT BRIEF
Start with your production target.
Submit the basic process data below. Jiacheng will use it to prepare the next technical discussion—not a generic catalogue quotation.
