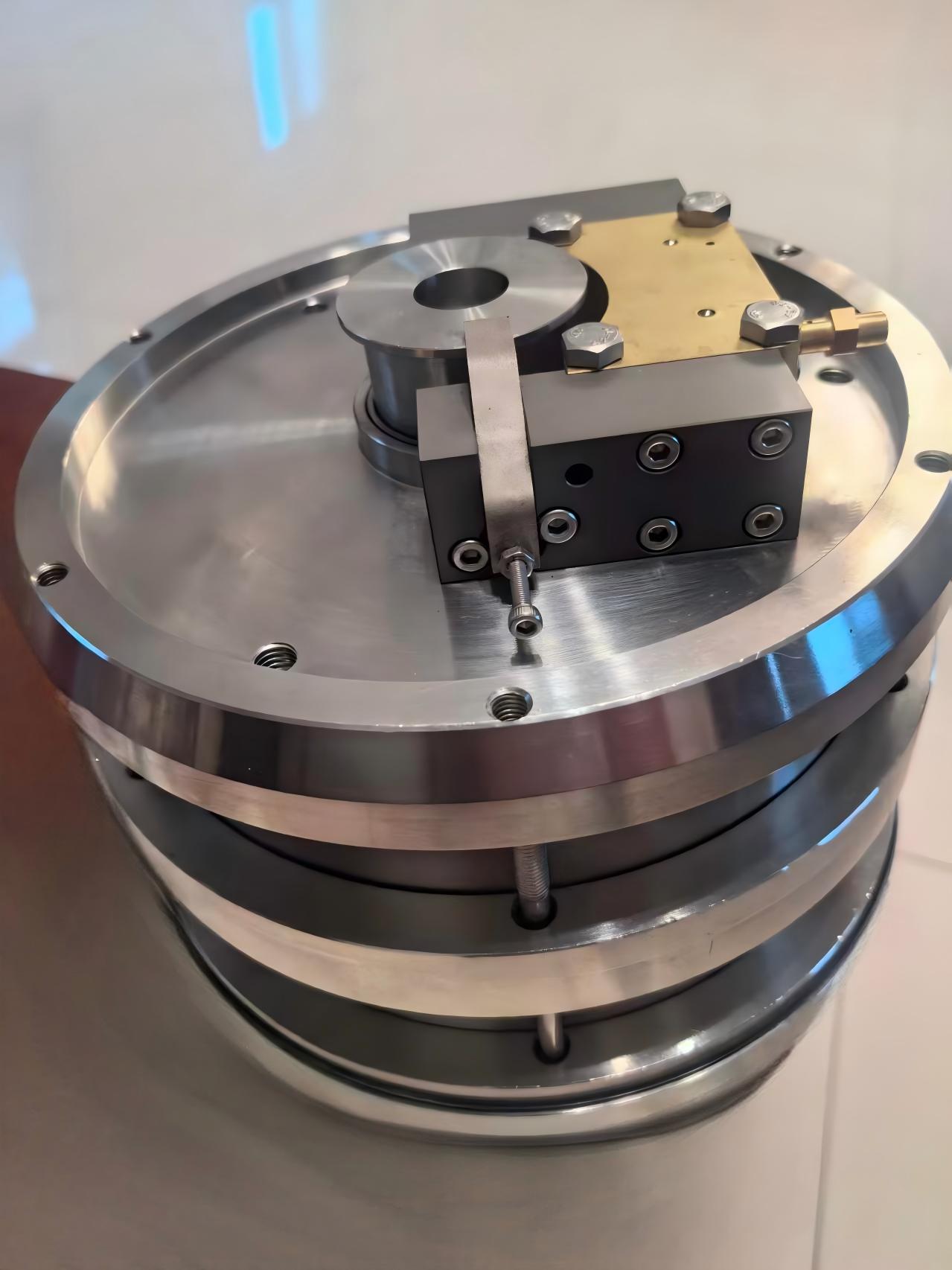

Repeatable Movement
Mechanism geometry developed for controlled oscillating motion.
JIACHENGPAPER MACHINE ENGINEERINGRequest a quote
PRODUCT SYSTEM · 08
Controlled motion.
Dependable operation.
Compact pneumatic oscillation units engineered for paper machine auxiliary applications.08Pneumatic Oscillators
PRECISION AUXILIARY EQUIPMENT
Engineered around your process.
Oscillator assemblies are manufactured for repeatable movement, practical adjustment and reliable installation. Connection details can be adapted to the customer's machine and operating requirements.
Robust Construction
Machined components and a compact assembly for industrial service.
Pre-Delivery Test
Functional adjustment and motion checks performed before shipment.
OPERATING BENEFITS
What this equipment improves.
Controlled oscillating motion
Stroke and movement are configured for stable doctor, shower or auxiliary-equipment operation.
Compact installation
The mechanism can be adapted around available mounting space and the existing connection arrangement.
Practical adjustment
Accessible adjustment points support commissioning and routine maintenance.
Functional verification
Each assembly can be motion-tested before shipment according to the agreed operating conditions.
APPLICATIONS
Configured for the product you need to make.
- 01Doctor blade oscillation
- 02Shower pipe oscillation
- 03Cleaning systems
- 04Custom auxiliary motion
TECHNICAL PROFILE
Configured to the actual machine duty.
Final materials, dimensions and interfaces are confirmed from the customer’s operating data and drawings.
- Typical applications
- Doctor blade, shower pipe and cleaning-system oscillation
- Drive medium
- Pneumatic, according to available air conditions
- Stroke
- Customized to the required application movement
- Frequency
- Selected for the process duty and connected equipment
- Mounting
- Project-specific flange, bracket or machine interface
- Pre-delivery check
- Motion, adjustment and connection inspection

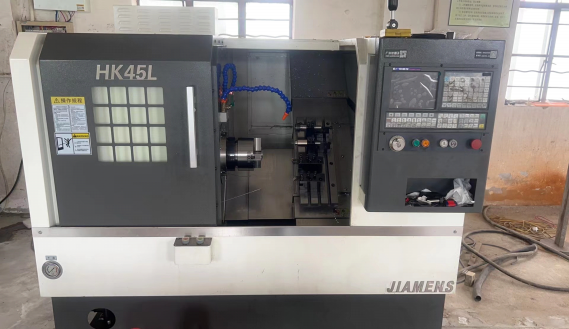

IN-HOUSE CAPABILITY
From engineering
to commissioning.
Project requirements are translated into practical manufacturing, inspection and support steps by one coordinated team.
FREQUENTLY ASKED QUESTIONS
Useful details before inquiry.
Which parameters are needed for selection?+
Please provide the application, required stroke, frequency, available air pressure, mounting orientation, connection dimensions and operating environment.
Can it replace an existing oscillator?+
Yes. Photos and a dimensional drawing of the existing unit and its machine connection are required for interface confirmation.
Is the unit tested before shipment?+
Functional motion and adjustment checks can be completed before packing according to the agreed inspection scope.
TECHNICAL INQUIRY
What to send us.
These details help our engineers understand your operating target and prepare a relevant technical proposal.
- 01Application position
- 02Required stroke
- 03Oscillation frequency
- 04Available air pressure
- 05Mounting space
- 06Connection drawing
PROJECT BRIEF
Start with your production target.
Submit the basic process data below. Jiacheng will use it to prepare the next technical discussion—not a generic catalogue quotation.
DISCUSS YOUR PROJECT
Let’s define the right solution.
Send your parameters, existing drawings or site photos. Our team will review the application and reply with the next engineering steps.
